Name: INNER OPENING AND INNER REVERSING SYSTEM WINDOW
SKU: -1



Location: HOME > PRODUCTS > Windows > Awning Window > INNER OPENING AND INNER REVERSING SYSTEM WINDOW

Products

INNER OPENING AND INNER REVERSING SYSTEM WINDOW

Product advantages and uses:

Premium casement windows with advanced thermal & sound insulation. Features 5mm double-glazed glass, 6063-T5 aluminum frames, and multiple opening methods. Ideal for AC unit compatibility.

E-mail

Contact

Technical Specifications

Parameter	Value
Frame Size	75mm
Material	6063-T5 native aluminum
Thickness	1.8mm
Color Options	Black, White, Fluorocarbon Gray, Metallic Coffee (customizable)
Powder Coating	Aksu T1010 (10-year global warranty)

Engineered for Superior Performance

Advanced Glass Configurations

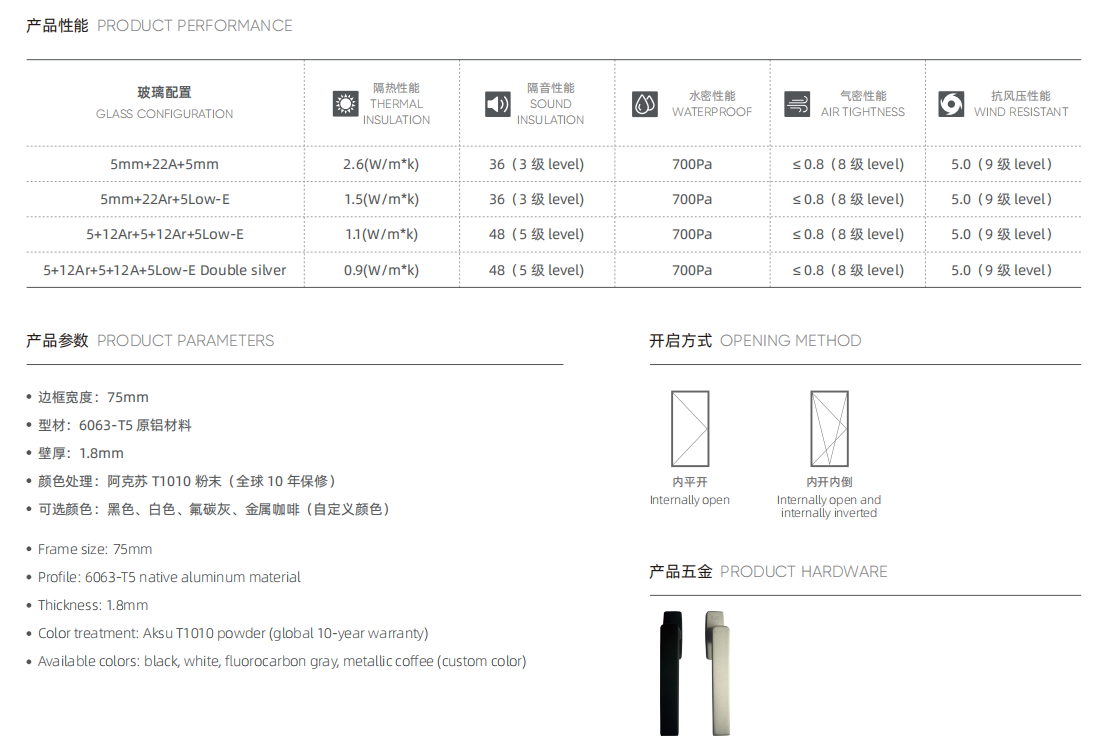

Our casement windows feature industry-leading double-glazed glass systems with argon-filled cavities (22A/12Ar) and Low-E coatings. The 5mm+22A+5mm configuration delivers exceptional thermal insulation at 2.6 W/m²·K, while the premium 5+12Ar+5+12Ar+5Low-E option achieves remarkable 0.9 W/m²·K performance – ideal for extreme climates.

Unmatched Functional Ratings

Sound Insulation: Ranges from 36dB (Level 3) to 48dB (Level 5) – effectively blocking urban noise
Waterproof: Consistently rated at 700Pa across all configurations
Air Tightness: ≤0.8 (Level 8) for energy efficiency
Wind Resistance: 5.0 (Level 9) for coastal/high-rise applications

Versatile Operation Modes

The innovative inner opening and inner reversing system provides flexible casement window operation. This dual-mode functionality allows for:

Standard inward opening for full access
Inward tilting for secure ventilation and easy cleaning

The design accommodates portable AC casement window kits without compromising security or insulation.

Architectural-Grade Construction

Manufactured from 6063-T5 aluminum alloy with 1.8mm thickness, these air conditioner casement windows combine structural integrity with elegant aesthetics. The Aksu powder coating ensures fade-resistant color retention, backed by a global 10-year warranty.
